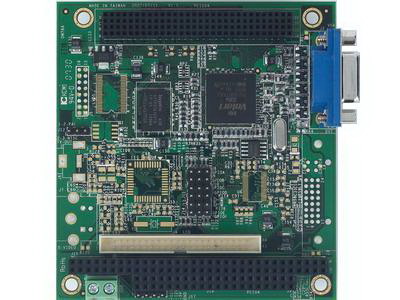

昭營PC/1O4 VSX-2812S 顯卡
企業信息
同類優質產品
更多+
產品分類
產品新聞
產品介紹
Specifications:
Chipset
Volari Z9s Chipset
32-bit PCI bus
Support 12-bit, 18-bit, and dual 12-bit Digital Interface
Support VGA, and Flat Panel Display
BIOS
VGA BIOS
Video Memory
Onboard 32MB DDR2 Resolution up to 1600x1200, 16M colors
Bus
PC/104+ standard compliant
Connectors
2.0mm 44-pin box header for LCD x1
2.54mm 4-pin header for +12V, -12V, -5V DC-in x1
External 15-pin D-Sub female connector for VGA x1
Power Requirement
Single Voltage +5V @ 200mA
Weight 77g
Board Size 90 X 96mm (3.54 x 3.77 inches)
Operation Temperature -20°C ~ +70°C
-40°C ~ +85°C (Optional)
Packing List
