KTB PS-300Y 工業電源
企業信息
同類優質產品
更多+
產品分類
產品新聞
產品介紹
特性：

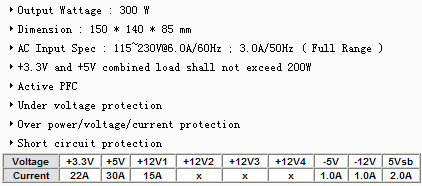

系統規格：
·300W 4 outputs
·Meet Intel AT 2.01/AT 2.03
·Operating temperature range from 0℃ to 50℃
·Build in long life ball bearing fan
·Build in thermal fan speed for noisy reduction
·Complies with FCC class B,Cispr Pub.22,EN55022 CLASS B and CE requirements
·MTBF 100KHRS @ 25℃ per MIL-HDBK-217F
·3 years manufacturer warranty
·Efficiency:>68% @ full load ,nominal line
·The continuous total output power is 300W max
·PG delay :100-500 msec ;PF delay:>1msec
·Hold-up time:16 msec（minimum） @ full load
·Transient Overshoot:10% max w/20% load change
·Rise Time:20msec （maximum） @ full load
·Power up Time:800 msec （maximum） @ full load
·Over power protection :150% max of rated output
·Over voltage protection on +5V ,+12V
·Short circuit protection on all output
·Mechanical Dimension: W x L x H = 150 ＊ 140 ＊ 85 mm
系統規格：
·300W 4 outputs
·Meet Intel AT 2.01/AT 2.03
·Operating temperature range from 0℃ to 50℃
·Build in long life ball bearing fan
·Build in thermal fan speed for noisy reduction
·Complies with FCC class B,Cispr Pub.22,EN55022 CLASS B and CE requirements
·MTBF 100KHRS @ 25℃ per MIL-HDBK-217F
·3 years manufacturer warranty
·Efficiency:>68% @ full load ,nominal line
·The continuous total output power is 300W max
·PG delay :100-500 msec ;PF delay:>1msec
·Hold-up time:16 msec（minimum） @ full load
·Transient Overshoot:10% max w/20% load change
·Rise Time:20msec （maximum） @ full load
·Power up Time:800 msec （maximum） @ full load
·Over power protection :150% max of rated output
·Over voltage protection on +5V ,+12V
·Short circuit protection on all output
·Mechanical Dimension: W x L x H = 150 ＊ 140 ＊ 85 mm
