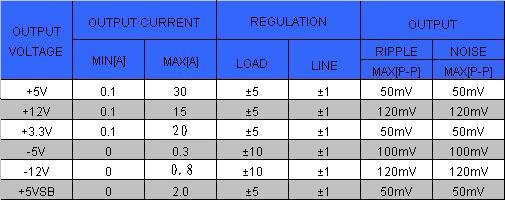

特性： ．Input Range:115VAC/230VAC . Input Frequency: 47～63Hz ．Dimension: PS/2 specification . Inrush Current : 80A Max.@cold start ．Leakage current: 0.75mA max.@264Vac input ．Total Power:300W 系統規格： ·300W 6 outputs ,AC passivity PFC Input design ·Meet Intel ATX 2.01/ATX 2.03/ATX 12V/EPS ·Operating temperature range from 0℃ to 50℃ ·Build in DC remote ON/OFF, PG/PF TTL signal ·Build in long life ball bearing fan ·Build in thermal fan speed for noisy reduction ·Complies with FCC class B,Cispr Pub.22,EN55022 CLASS B and CE requirements ·MTBF 100KHRS @ 25℃ per MIL-HDBK-217F ·3 years manufacturer warranty ·Efficiency:>68% @ full load ,nominal line ·The continuous total output power is 300W max ·The combined power of +5V and +3.3V is 180W max ·The combined power of +5V and +3.3V and +12V is 280W max ·Remote ON/OFF:TTL High/PS OFF,TTL Low /PS ON ·PG delay :100-500 msec ;PF delay:>1msec ·Hold-up time:16 msec（minimum） @ full load ·Transient Overshoot:10% max w/20% load change ·Rise Time:20msec （maximum） @ full load ·Power up Time:800 msec （maximum） @ full load ·Over power protection :150% max of rated output ·Over voltage protection on +5V ,+12V,and +3.3V ·Short circuit protection on all output ·Mechanical Dimension: W x L x H = 200x100x70mm
