KTB PS-250WDC24V 工業電源
企業信息
同類優質產品
更多+
產品分類
產品新聞
產品介紹
特性：
INPUT: 24VDC （18～32VDC）

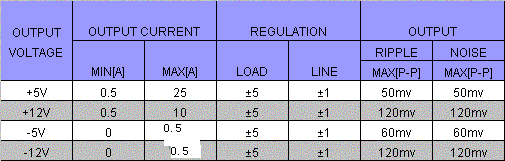

OUTPUT CHARACTERISTICS:
系統規格：
◆Input current: MAX 25A at 24VDC.
◆Operating temperature from 0℃ to 50℃.
◆Inrush current : not exceed 10A at 24VDC input, cold start at 25℃.
◆MTBF 100KHRS @ 25℃ per MIL-HDBK-217F.
◆3 years manufacturer warranty.
◆Efficiency : >68% @ full load nominal line.
◆The continuons total output power is 250W MAX.
◆PG delay : 100～500msec ;PF delay : > 1msec.
◆Hold up time : 16 msec （minimum） @ full load.
◆Transient overshoot : 10% max W/20% load change.
◆Protection against wrong polarity if 24VDC input is inversely connected by mistake.
◆Short circuit protection on all output.
◆Mechanical Dimension :150＊140＊86mm.
系統規格：
◆Input current: MAX 25A at 24VDC.
◆Operating temperature from 0℃ to 50℃.
◆Inrush current : not exceed 10A at 24VDC input, cold start at 25℃.
◆MTBF 100KHRS @ 25℃ per MIL-HDBK-217F.
◆3 years manufacturer warranty.
◆Efficiency : >68% @ full load nominal line.
◆The continuons total output power is 250W MAX.
◆PG delay : 100～500msec ;PF delay : > 1msec.
◆Hold up time : 16 msec （minimum） @ full load.
◆Transient overshoot : 10% max W/20% load change.
◆Protection against wrong polarity if 24VDC input is inversely connected by mistake.
◆Short circuit protection on all output.
◆Mechanical Dimension :150＊140＊86mm.
